Our Products Consumer Products Sunde



Back



PC Expander

Product Code:  SND SD-800
Brand Name:    Sunde

Download Brochure


Description

The SD-800 Series is a network-based computing terminal. This allows multiple users to share the computing resources of a single computer's CPU, memory, HDD, etc.


Specification


Power:
AC 110V ~ 220V 50/60 Hz, DC 5V/2A
Size:
168mm x 30mm x 125mm
Weight: 250g
Top: Power switch
Front:
Power LED, Network Connection LED, Operation LED
Rear: AC input, audio out, video out, PS/2 keyboard, PS/2 mouse, LAN Port
Supported OS: Windows 2000 Professional, Windows XP Home, Windows XP Professional, Windows XP Media, Windows 2000 Server, Windows 2003 Server

Minimum Recommended Host Configuration
We recommend to add 128 MB RAM per additional terminal.



Terminals

1-3

4-6

7-10

11-20

21-30

CPU

Intel Pentium
1.3 GHz

Intel Pentium
2.4 GHz

Intel Pentium
3.0 GHz

Intel Pentium
3.2 GHz

Intel Xeon
3.2 GHz

Memory

512 MB

768 MB

1 GB

2 GB

3 GB

HDD Speed

7,200 rpm

7,200 rpm

7,200 rpm

10,000 rpm

10,000 rpm

Connection



Features

Lower Total Deployment Cost (TDC) and Total Cost of Ownership (TCO)

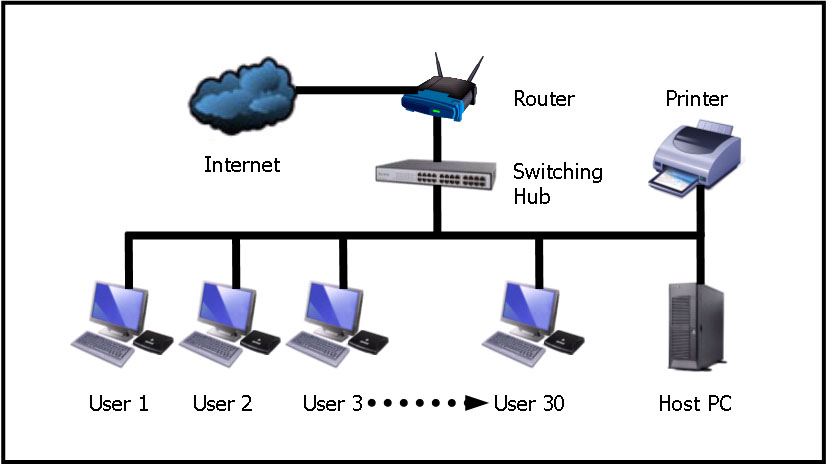

Compared with the TCO for individual computers, the TCO for each device is minimal. Purchasing one Host PC and multiple SD-800 Series Terminals as needed, would allow for 11 individual users access for a small price. (One Host PC can support up to 30 terminals using a Windows Server OS and up to 10 terminals when using Windows XP)

Hassle-free Maintenance
Since there is no CPU, Memory, or HDD, no additional hardware or software maintenance would be required. The Host PC is the only device that requires additional maintenance.

Compatibility
Most programs that currently run on Windows and Linux will run on the SD-800 Series without compatibility issues. (3D games and resource-intensive applications like CAD will not perform well on this system).

Simultaneous User Operation
Both the Host PC and the SD-800 Series can run and execute the same applications independently. (Additional software licenses may be required)

Small sleek design
The space saving design creates more room for your office or desk area. It combines video, audio output, mouse, keyboard, and network functionalities into a small package.

Energy efficient
Consumes 5 watts (even lower) -- compared to a PC’s 250 watt minimum, this amounts to significant savings in the long run.

Supports high-resolution displays
640x480, 800x600, 1024x768, 1280x1024 16-bit (65,536 colors).

Environment-friendly
The SD-800 Series create a quiet and cool environment due to the lack of a cooling fan or other moving parts.

High level of security and improved speed
SUNDE's proprietary terminal protocol and 128-bit encryption provides you with maximum security, and enhances the speed of computing through image caching and improved protocol performance.

Total Solution
The SD-800 Series provide an all-in-one solution with a Network Terminal and Enterprise Terminal Server software developed in-house by SUNDE.


Application

Ideal Industries

  • Education
  • Healthcare
  • Finance
  • Government
  • Retail
  • Tourism / Travel
  • Manufacturing
  • Construction
  • Call Centers
  • Data Entry Centers
  • Libraries
  • Internet Cafés
  • Exhibits
  • Information Kiosks
  • Mobile Offices
  • Training Center
  • Computer Lab
